Undercounter Dual Zone Wine Cooler
1/4

Undercounter Dual Zone Wine Cooler

£1,290.46 GBP
Finish

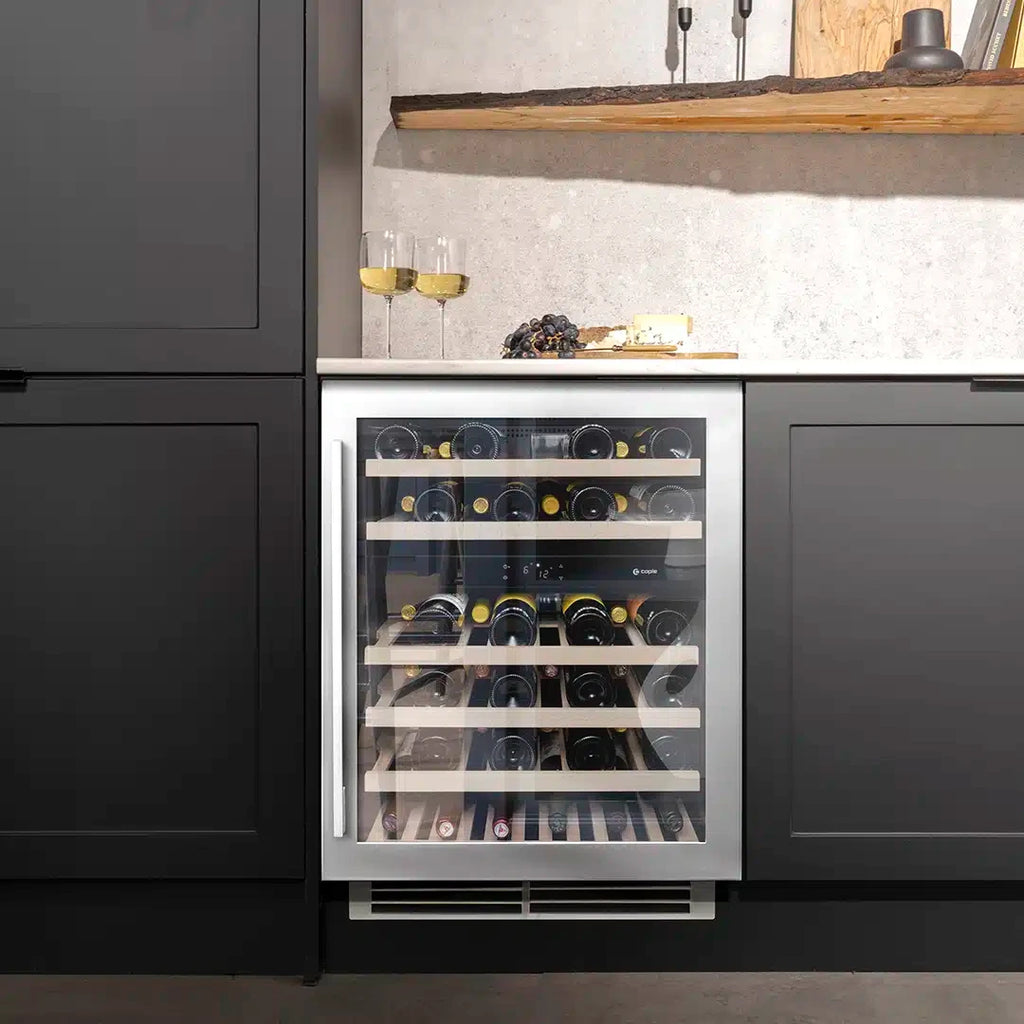

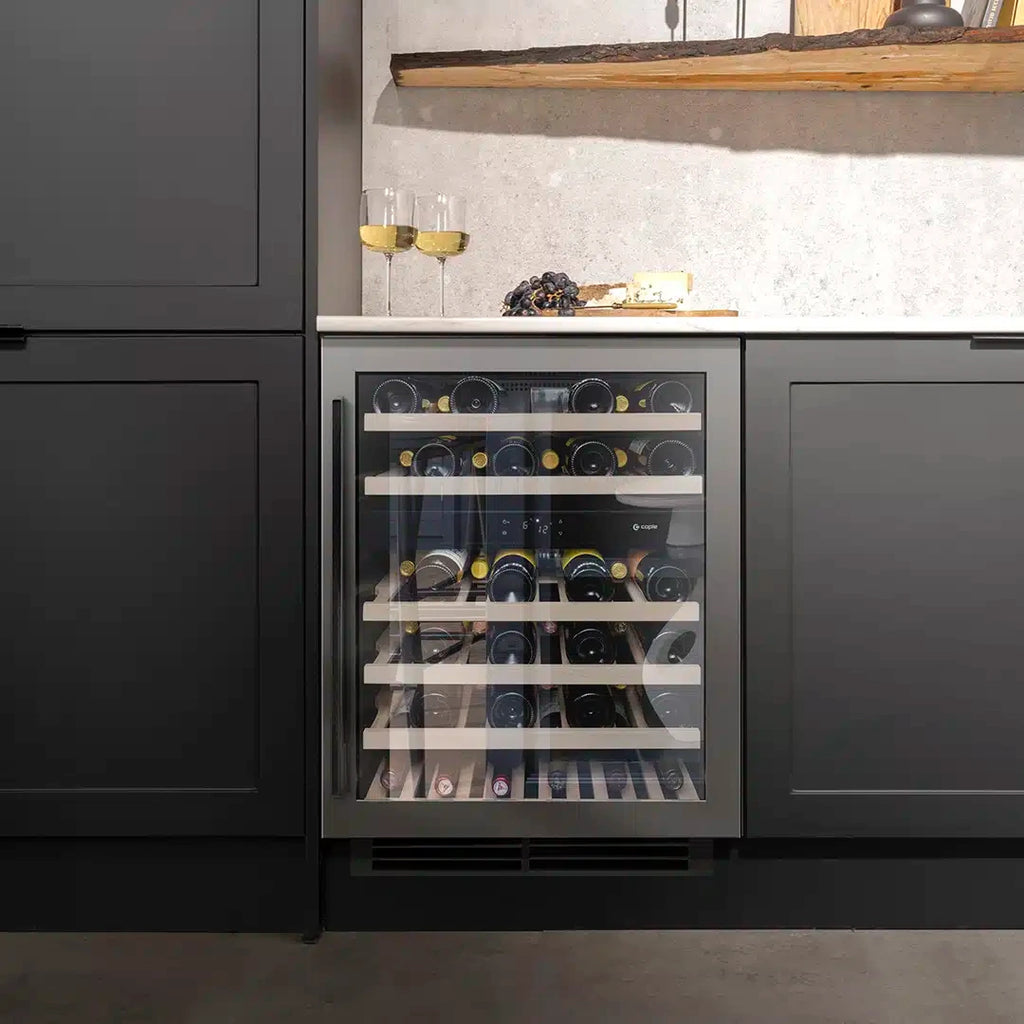

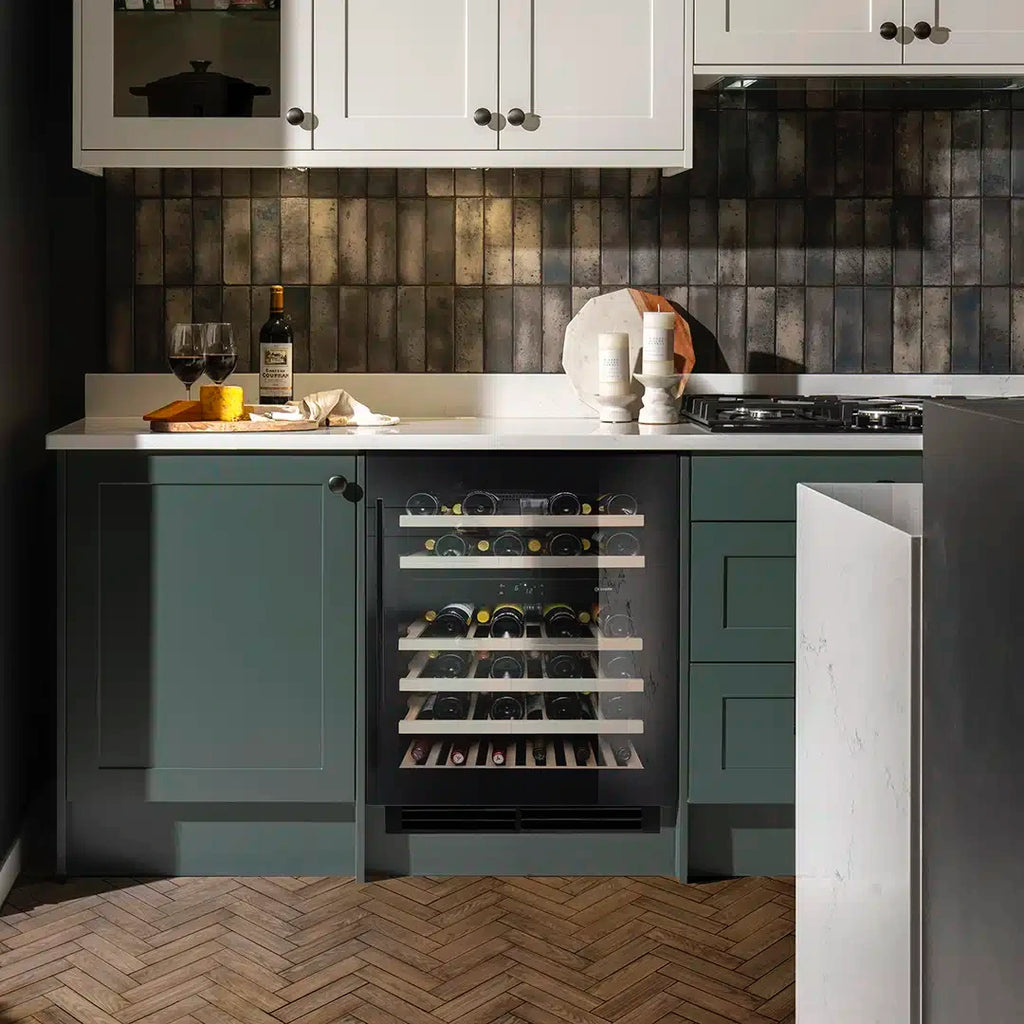

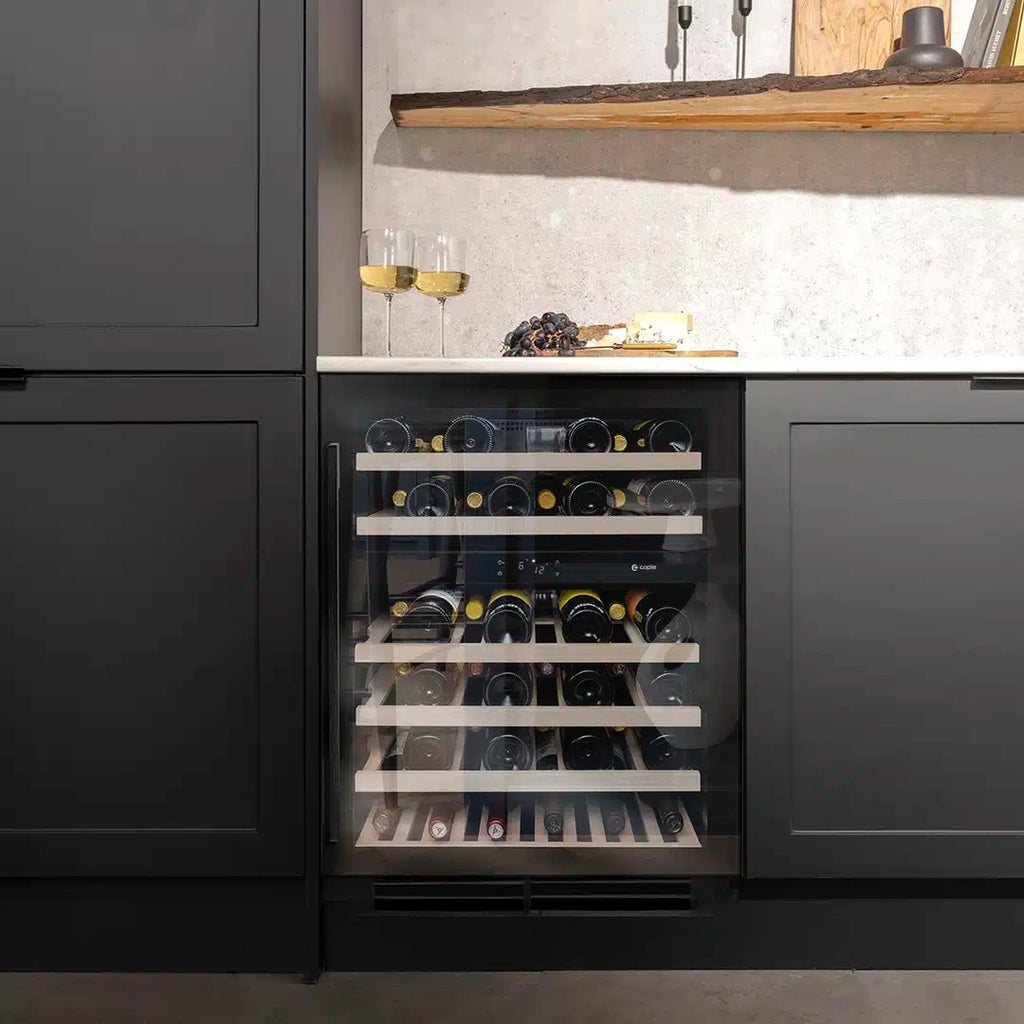

The Caple Undercounter Dual Zone Wine Cooler  is an under-counter, dual-zone wine cooler with a sleek black steel door, able to hold up to 46 standard 750 ml bottles. It offers independently controlled upper and lower temperature zones (5–10 °C and 10–18 °C), touch controls with a white LED display, vibration-free no-frost compressor cooling, UV-safe lighting, and adjustable shelving on beech racks. Slim and cupboard-ready, it runs quietly (~39 dB), consumes ~145 kWh/year, and fits a standard 595 mm width space.

Features

  • One piece black steel door
  • Shelves can accommodate 750ml Bordeaux, Burgundy and Champagne bottles
  • No-frost compressor cooling technology maintains a consistent temperature
  • Dual stacked temperature zones
  • Independently controlled [upper zone serving, lower zone storage]
  • Touch controls and white LED display
  • UV/heat-free white LED lighting (switchable)
  • Vibration free
  • Adjustable height to fit 100 - 150mm plinth
  • Black handle
  • Fan circulated cool air for even temperature distribution
  • Reversible door
  • Heater raises internal temperature when external temperature drops
  • Beech shelves
  • Upper zone has 2 sliding shelves
  • Lower zone has 3 sliding shelves and 1 base shelf
  • 100% CFC/HFC free
  • Toughened UV protected glass door
  • 2 Humidity control water tanks
  • Black cabinet interior and exterior
  • Recessed for fitting furniture plinth
  • Air ventilation through plinth grille
  • Supplied with both black steel universal plinth grille [w:525mm] and full width grille

Specification

Dimensions:

  • Width 595mm

Performance:

  • Energy class G
  • Noise class C
  • Energy consumption 145kWh/yr
  • Ambient temperature 16ºC - 32ºC
  • Temperature range [Upper zone] 5ºC - 10ºC
  • Temperature range [Lower zone] 10ºC-18ºC
  • Humidity range >65%RH
  • Quiet operation 39dB[A]

Capacity:

  • Total net capacity: 4.73 Cu ft/134 Litre
  • Total gross capacity: 5.79 Cu ft/164 Litre
  • Stores maximum bottles: 46 Bordeaux style wine bottles 750ml [16 upper zone and 30 lower zone]

Manual

Click here for Instruction Manual

Click here for Installation Diagram
